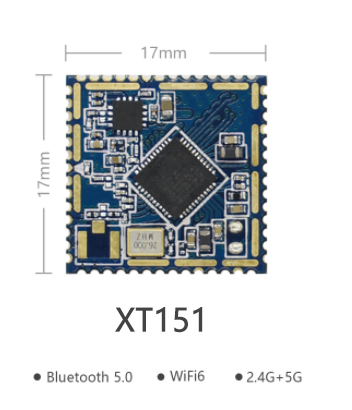

XT151、WiFi 6 + Bluetooth 5.0 module XT151
Xt151 module adopts industry-leading wi-fi6 and Bluetooth 5.0 dual-mode single chip, and requires external MCU to run Bluetooth protocol stack.While supporting all indicators of wi-fi6, the power consumption is the lowest in the industry. Xt151 integrates cortex-m4f CPU at the same time, and the main frequency can reach 400MHz.Xt151 supports Wi Fi 802.11b/g/n/a/ac/ax standard, 2.4GHz and 5GHz dual band Wi Fi, SDIO / UART / USB interface and complete TCP / IP protocol. Users can use this module to add networking functions of existing devices or establish an independent network controller.
《XT151 features》:
● Bluetooth 5.0 dual mode
● single chip fully integrated RF, modem and Macintosh
● 802.11b/g/n/a/ac/ax Wi Fi standard
● wi-fi6 supports 2.4ghz/5ghz frequency band
● UART, SDIO, USB interface
● low cost solutions
《Application》: ● automotive electronics● smart home● industrial control● Internet of things equipment

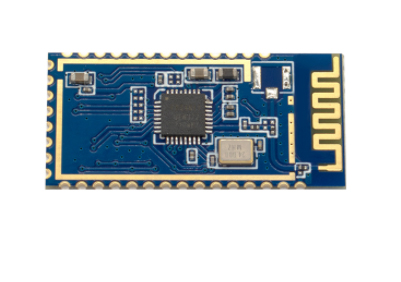

XT152 ， WiFi 6 + Bluetooth 5.2 module XT152
Xt152 module is a high-performance and highly integrated Bluetooth 5.2 dual analog digital transmission module, which can support spp, GATT and hid protocols at the same time,UART master-slave integrated serial port transparent transmission, spp speed up to 50kb / s, users can configure module parameters through at command, which is very easy and efficient
《XT152 features》:
● Bluetooth version: Bluetooth 5.2 dual mode
● configuration file support: spp, hid, GATT, etc
● size: 13mm x 26.9mm x 2mm
● default serial port baud rate 115.2kbps, baud rate range: 1200BPS ~ 921.6kbps
● support UART, I2C data connection interface
● features: high speed, high compatibility
《Application》:● health and medical equipment● Bluetooth printer● barcode scanner
● monitoring and measurement system● industrial sensors and controls
